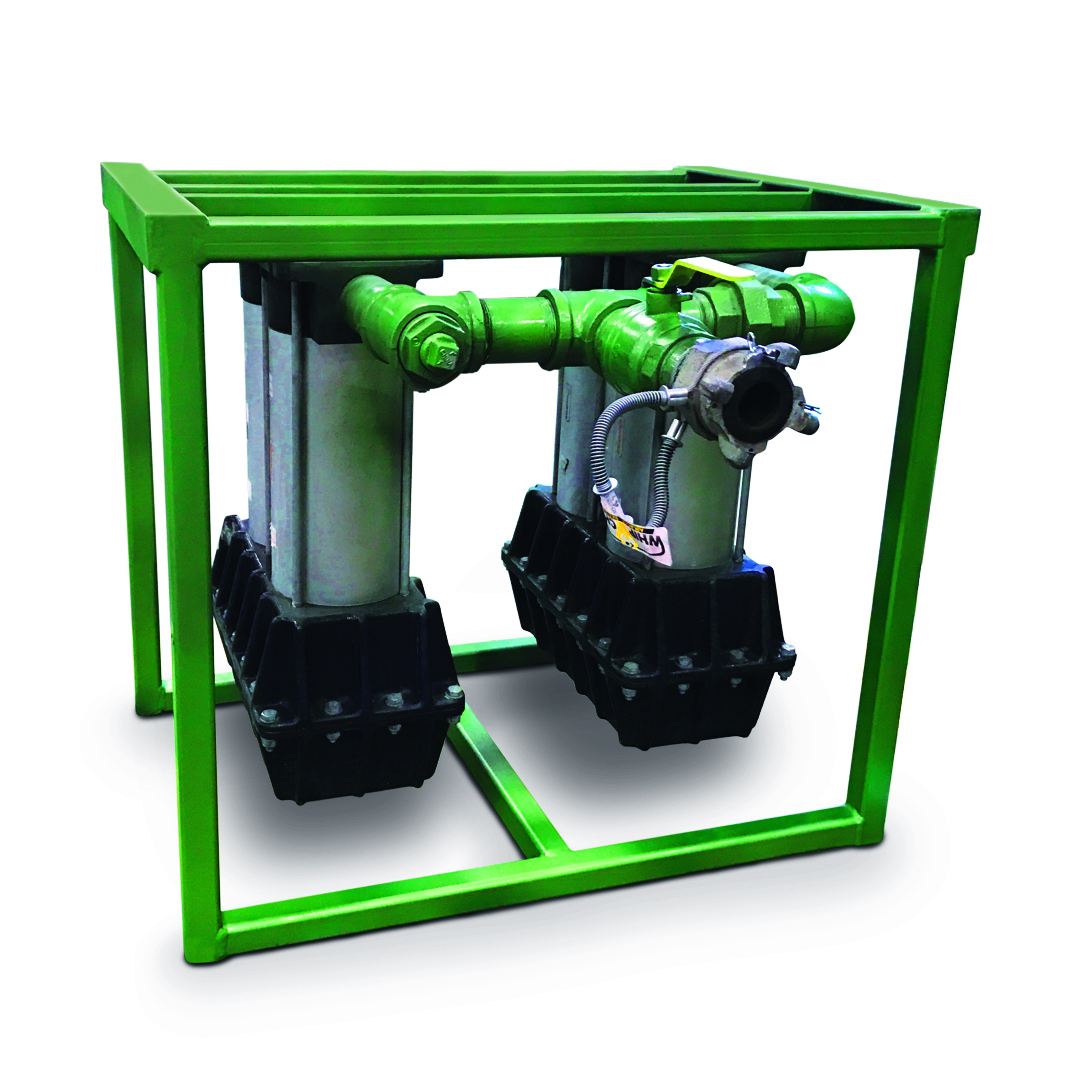

A compressed air filter dryer system rental from LGH.
When crews rent air-powered equipment, the focus is often on pressure, capacity, and performance. But clean, dry air is just as important. A compressed air filter dryer helps remove moisture, oil, dirt, rust, and other contaminants before compressed air reaches pneumatic tools, hoists, winches, or other air-powered equipment.
LGH rents La-Man air filter/dryer systems, including the 140, 180, and 360 models. These systems can be used with pneumatic equipment such as air chain hoists, air winches, air tuggers, and other air-powered tools that rely on a clean compressed air supply.
In this blog post, we’ll explain how a compressed air filter dryer works, why it matters, and when to use one with your pneumatic equipment rental.

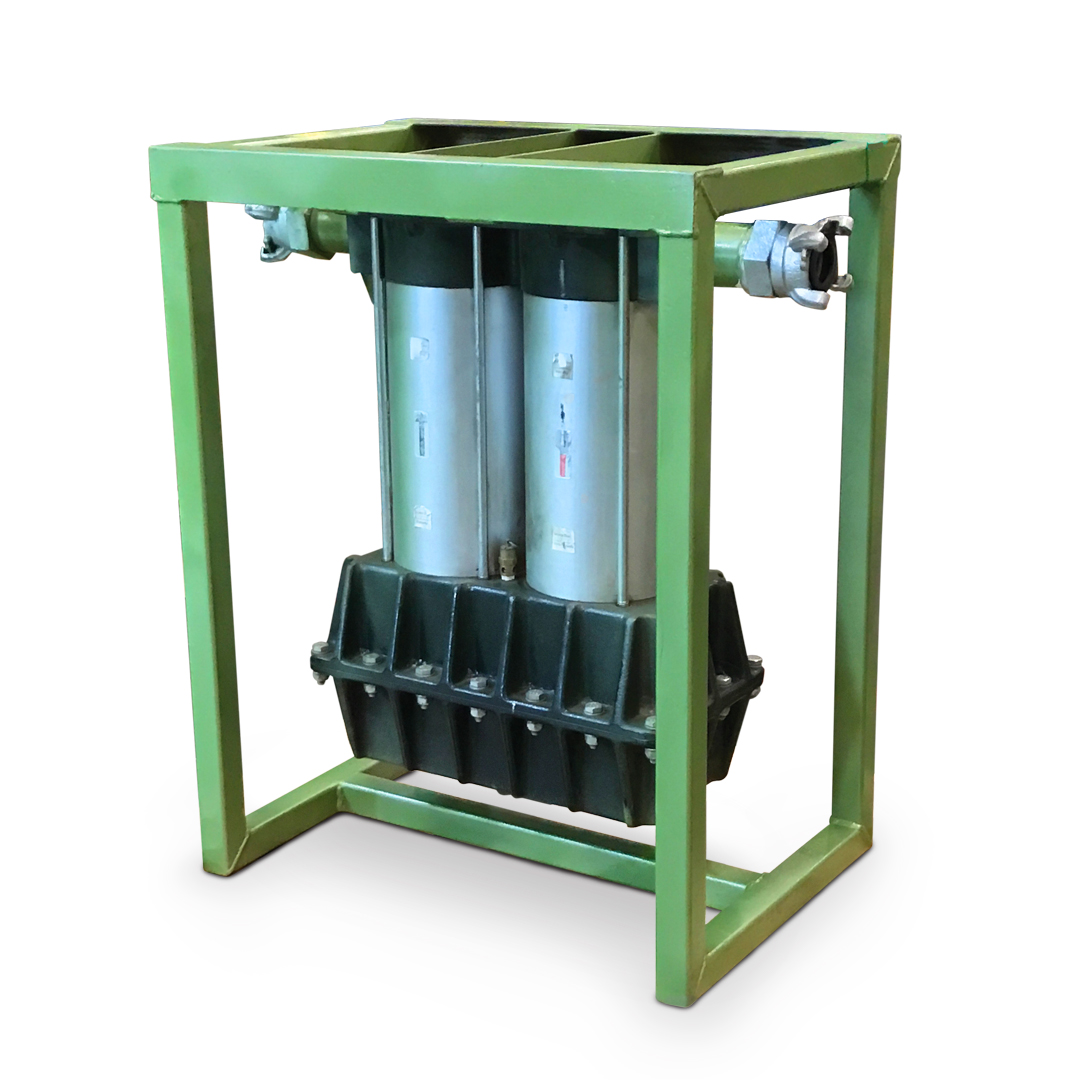

Two compressed air filter dryer systems inside the LGH Rental Center warehouse.
A compressed air filter dryer is a filtration system used to remove moisture and contaminants from compressed air lines. It helps clean the air before it reaches pneumatic equipment.
Compressed air may look clean, but it can carry moisture, oil vapor, dirt, dust, rust, and other particles. If those contaminants reach the equipment, they can reduce performance, cause corrosion, clog internal components, or create downtime.
A compressed air filter dryer helps protect air-powered equipment by filtering and drying the air near the point of use.
Pneumatic equipment depends on steady, clean compressed air. If the air supply contains moisture or contaminants, the equipment may not operate as efficiently.
Dirty or wet compressed air can contribute to:
For air chain hoists, air winches, and other pneumatic lifting or pulling equipment, air quality can directly affect how smoothly the equipment runs.
A graphic of how the La-Man air filter dryer system operates.
A compressed air filter dryer works through a two-stage filtration process.
First, compressed air enters the filter/dryer carrying tiny particles of dirt, dust, oil, and moisture. As the air passes through the first-stage cartridge mesh filter, a coalescing effect causes small moisture droplets to combine into larger droplets.
Next, air velocity slows inside the extraction chamber. This allows particles to collect and moisture to condense. Particle-laden water then flows to the bottom of the unit and exits through the drain.
After that, the air passes through a second-stage fiber filter cartridge. This stage captures remaining particles down to 5 microns and helps remove additional moisture and contaminants.
The result is cleaner, drier air with less dirt, rust, oil, and water droplets to disrupt air equipment operation.
Compressed air filter dryer systems can be paired with air winch rentals from LGH.
Air chain hoists, air winches, and other pneumatic equipment require more than enough pressure and CFM. They also need air that is clean enough to protect internal components.
A compressed air filter system can be especially useful when:
Using a compressed air filter dryer near the point of use can help protect the equipment and keep the system operating more consistently.
La-Man recommends using the Extractor/Dryer at the point of use. This means placing the compressed air filter dryer close to the pneumatic equipment rather than only filtering air at the compressor.
Point-of-use placement matters because compressed air cools as it travels through hoses and lines. As the air cools, moisture can condense into liquid. A filter dryer located near the tool, hoist, or winch helps remove that moisture before it reaches the equipment.
In general, the shortest practical distance between the filter dryer and the pneumatic equipment helps deliver cleaner air to the point of operation.
LGH rents La-Man air filter/dryer systems in several sizes to match different compressed air requirements.
Available models include:
The correct model depends on the required airflow, pressure, pneumatic equipment, hose setup, and jobsite conditions.

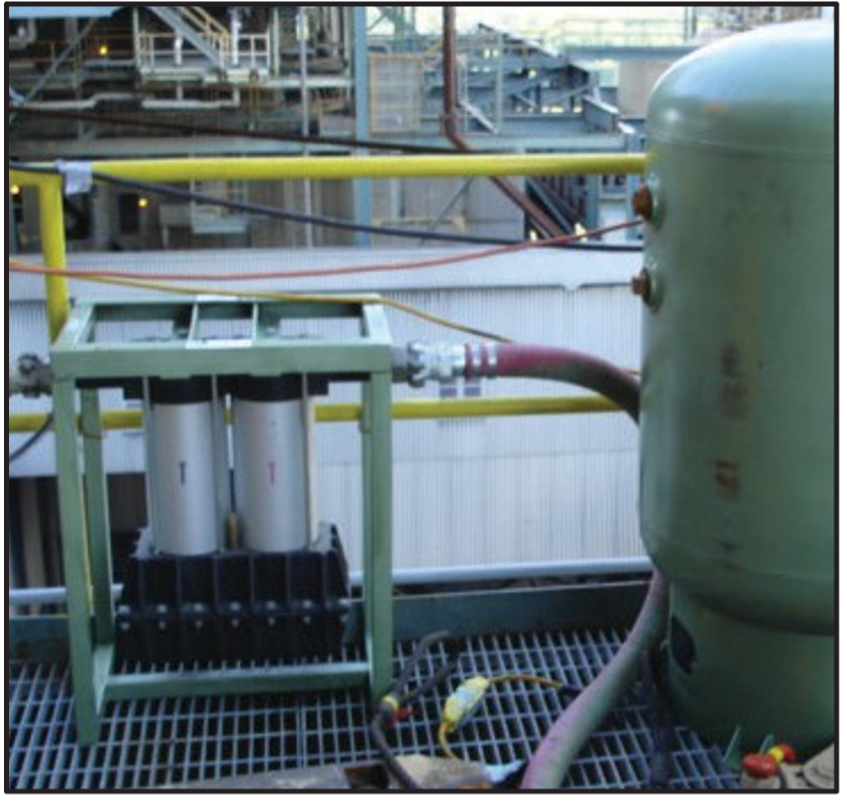

An air tank and compressed air dryer system from LGH on a jobsite.
Compressed air filter dryers can support many applications where clean air matters.
Common uses include:
For LGH customers, these systems are especially useful when paired with rental air-powered lifting, pulling, and material handling equipment.
To get the most from a compressed air filter dryer, crews should review the full compressed air setup before operation.
Important setup tips include:
Air quality depends on the entire system, not just one component. Compressor size, air lines, hoses, fittings, filters, oilers, dryers, and drains all affect performance.

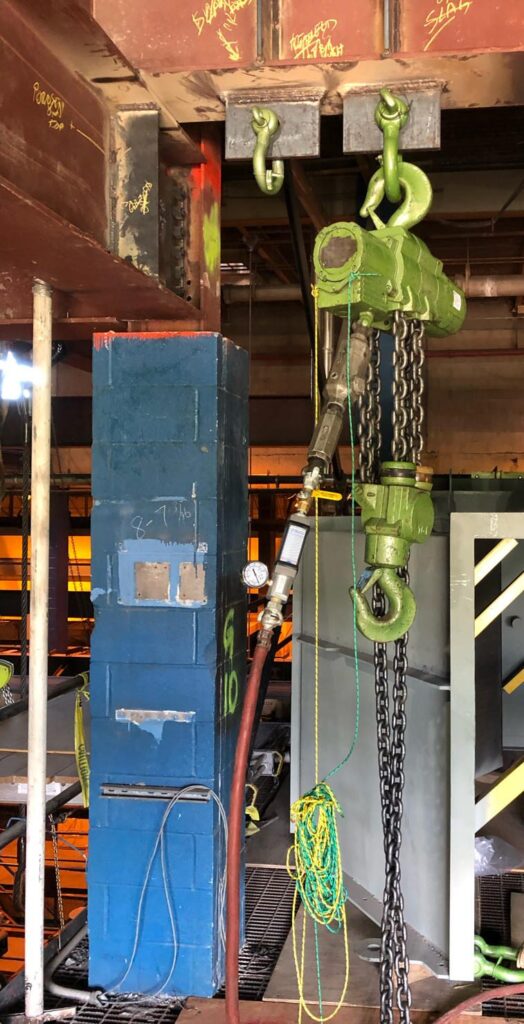

Compressed air filter dryer systems can help keep air clean for pneumatic tools like air chain hoists.
A compressed air filter dryer may be needed when air quality is affecting equipment performance or when the jobsite conditions increase moisture risk.
Signs to watch for include:
Adding the right industrial air dryer or pneumatic air dryer can help reduce these problems and protect air-powered rental equipment.
A filter dryer is only one part of a complete compressed air setup. LGH also offers other air accessories for rent that may be used with pneumatic equipment.
Available compressed air accessories may include:
These components can help support air chain hoists, air winches, and other pneumatic equipment by improving air delivery, filtration, lubrication, and system performance.
LGH rents compressed air filter dryer systems for pneumatic equipment applications across construction, industrial maintenance, manufacturing, utilities, oil and gas, offshore, and other demanding environments.
Our rental specialists can help review your pneumatic equipment, required SCFM, pressure, hose length, air source, moisture concerns, and jobsite conditions to determine the right compressed air filter system for your application.
A compressed air filter dryer helps protect pneumatic equipment by removing moisture, oil, dirt, dust, rust, and other contaminants from compressed air lines. For air chain hoists, air winches, and other air-powered tools, cleaner and drier air can help improve performance and reduce avoidable downtime.
LGH rents La-Man air filter/dryer systems, including the 140, 180, and 360 models, for use with pneumatic equipment and compressed air setups.
For help choosing an air compressor filter dryer, compressed air filter, compressor air dryer, or pneumatic air dryer for your next project, contact LGH today or call 800-878-7305 to speak with a rental specialist.
A compressed air filter dryer removes moisture, oil, dirt, dust, rust, and other contaminants from compressed air before it reaches pneumatic equipment. This helps protect air-powered tools, hoists, winches, and other equipment.
Dry air helps reduce corrosion, moisture buildup, freezing, clogging, and internal wear. Pneumatic equipment performs better when the air supply is clean, dry, and properly delivered.
A compressed air filter dryer is often most effective when installed near the point of use. This helps remove moisture that condenses in the air line before it reaches the pneumatic tool, hoist, or winch.
Yes. Compressed air filter dryers can be used with air chain hoists, air winches, and other pneumatic equipment when the system is properly sized for the required airflow and pressure.
LGH rents La-Man air filter/dryer systems, including the 140, 180, and 360 models. These models range from 250 SCFM to 1,000 SCFM.
A compressed air filter removes particles and contaminants from the air stream. A compressed air dryer removes moisture. A compressed air filter dryer combines both functions to help deliver cleaner, drier air to pneumatic equipment.
