Rigging 101: All About Slings
Are you planning a lifting project and unsure about the correct sling type to use? Or maybe you’re not getting the service life you expect from the slings you’re currently using? Choosing the right lifting sling is an important part of any lift plan.
Web slings, wire rope slings, polyester round slings, and chain slings all provide safe and efficient options for lifting, moving, and positioning loads. However, choosing the right sling depends upon understanding the lifting application, the environment in which the lift will take place, and how the sling will be used to support and lift a load.
This article is not intended to be a comprehensive guide. However, our goal is to give you a broad overview of the different sling types offered by LGH and provide you with the advantages and disadvantages of each type so you can make a better-informed decision when selecting the best sling for your application.

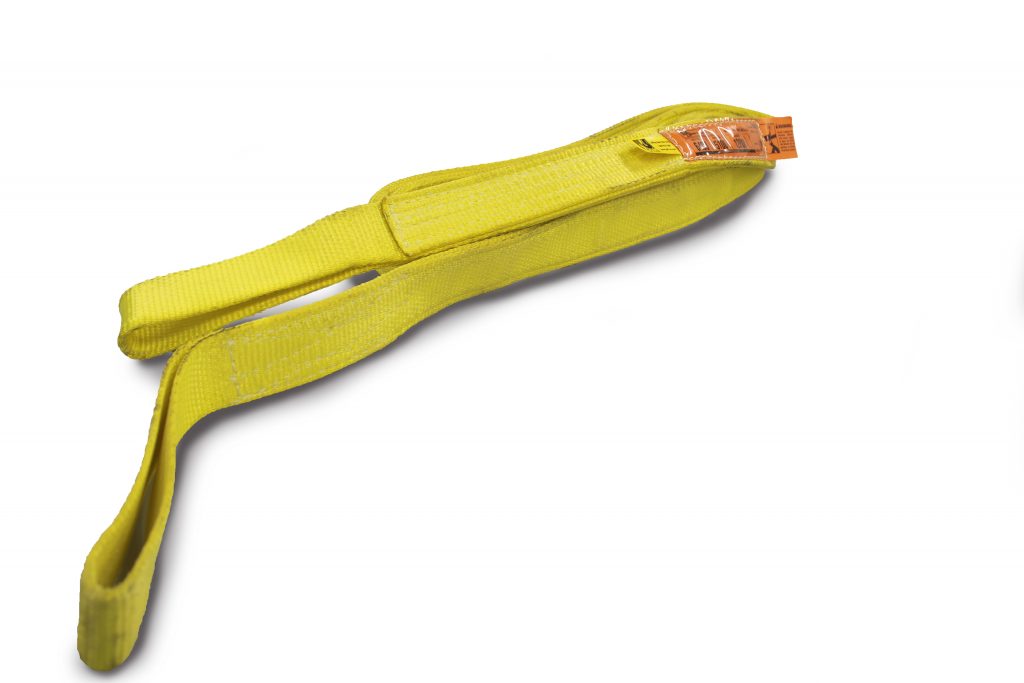

Web Slings
Web slings are the most versatile and widely used multi-purpose sling since they are strong, flexible, and easy to rig. Their inexpensive and lightweight design makes them attractive to almost any industry or lifting application. They’re essentially flat belt straps made of webbing material. They commonly have fittings or eyes on each end, although endless slings are also available.
Pros:
- Made of soft, flexible material that grips and molds to the shape of irregular loads
- Strong enough to lift heavy loads but will protect delicate loads from scratching
- Performance not affected by oil and grease, resistant to alkaline-based chemicals
Cons:
- Low heat resistance, not to be used in environments where the temperature is below – 40˚F or above 194˚F
- Not as durable as steel slings when it comes to abrasion and cut resistance. Wear pads required when lifting loads with sharp edges.
- Sensitive to prolonged exposure to sunlight and UV rays
You can find a more detailed guide to our various web sling offerings here.

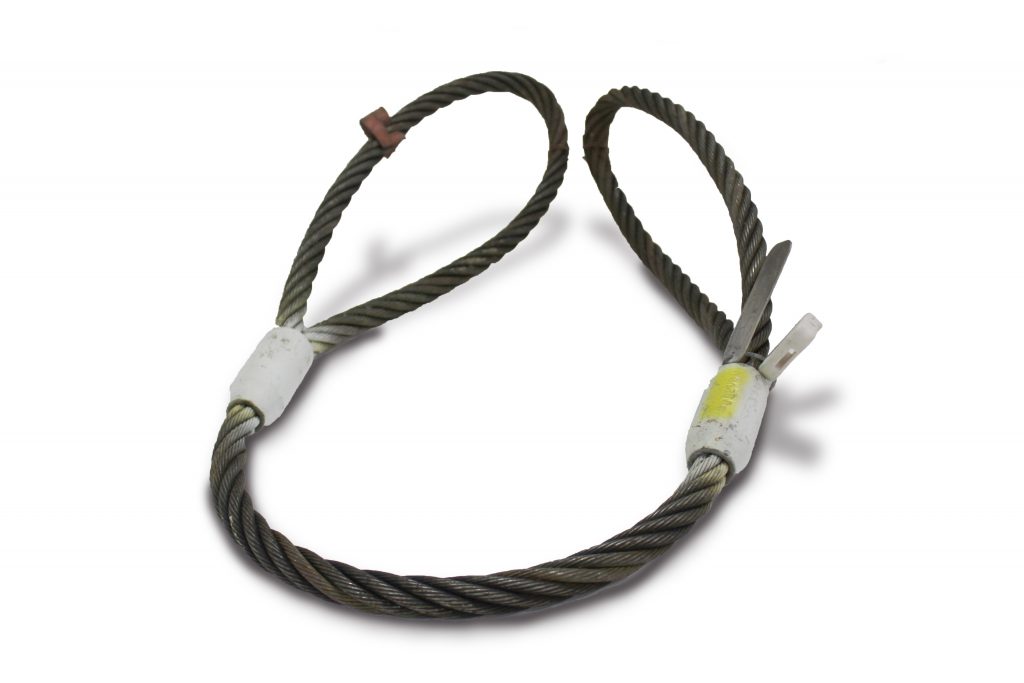

Wire Rope Slings
Wire Rope slings are popular across industries where rugged conditions exist due to their strength, flexibility, and abrasion resistance. Its unique design consists of multiple steel wires that form individual strands laid in a helical pattern around a fiber or steel core. LGH wire rope slings feature a mechanical splice and a standard eye-to-eye design, available in various capacities and sizes.
Pros:
- Lighter in weight and lower initial cost than alloy chain slings
- Different designs provide strength, flexibility, and abrasion/fatigue/corrosion resistance
- Can be used in vertical, choker, and basket hitches
- If the wire rope is damaged, the hardware may be re-used – provided it is undamaged
Cons:
- Difficult to inspect – especially in and around the core
- Abuse or misuse may cause kinking, crushing, or abrasion, resulting in damage and loss of strength. Unrepairable if damaged.
- Susceptible to internal and external corrosion
- Not to be used in temperatures above 400˚F or below -40˚F

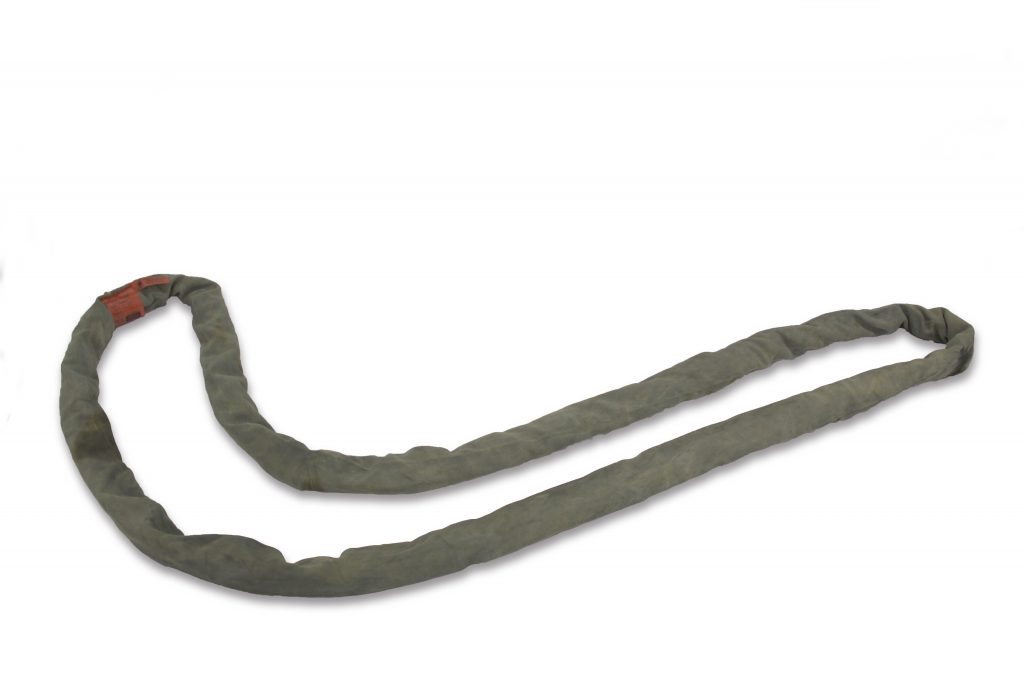

Polyester Round Slings
Round slings have load-bearing fiber or core yarns protected by a woven outer jacket. The jacket protects the internal load-bearing fibers and core yarns against abrasion, dirt, grease, and UV degradation. They suit general and heavy industrial lifting perfectly. They have the precision and flexibility to perform heavy lifting jobs quickly and safely.
Pros:
- Weighs approximately a tenth of the total weight of a comparable steel sling
- Strong, soft, and flexible composition means the sling will not damage your load when used correctly
- Usable in vertical, basket, or choker hitches
- Suitable for acidic environments and around bleaching agents
Cons:
- Susceptible to heat damage
- Wear pads required for loads with sharp edges or in any case where extra durability is needed
- Weakened by prolonged exposure to sunlight and UV rays
- Not to be used in alkaline environments

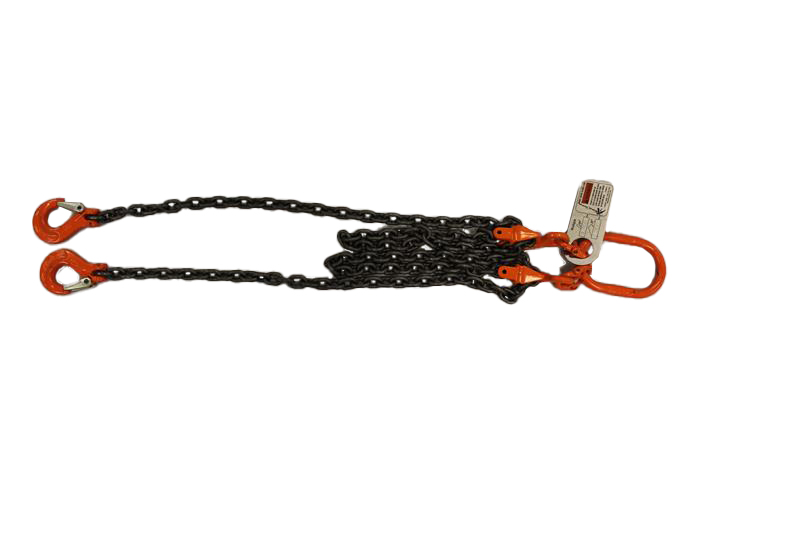

Chain Slings
When it comes to durability – chain slings are on top. You can use chain slings to lift heavy and bulky loads regularly or repetitively. Their strength, durability, and high heat resistance make them ideal for foundries, steel mills, heavy machine shops, and other harsh environments where other slings would fail. In addition, their design is flexible. You can configure them in single-leg, 2-leg, 3-leg, or 4-leg designs. You can also use various sling hooks, chain lengths, and master links to create different sling assemblies for various applications.
Pros:
- They can be repaired and can be load tested and re-certified, if damage occurs
- Able to withstand extreme temperatures
- May be configured for use in vertical, choker, or basket hitches
- Resistant to corrosion, chemicals, and UV exposure
- Unaffected by dirt, oil, or grease
Cons:
- Very heavy – the higher the rated capacity, the heavier the chain will be
- May be more expensive than other sling types
- Can easily crush or damage sensitive or finished parts
Conclusion
Many options are available when selecting the correct sling for your lifting application. However, you should consider various factors before selecting a sling to ensure it operates safely and efficiently.
For more information and assistance in selecting the best tool for any job, click here to contact one of our a member of our expert team, or give us a call at (800) 878-7305.
